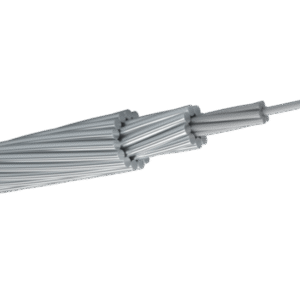

STACIR/AW,Hi-STACIR/AW SUPER THERMAL-RESISTANT ALUMINUM-ALLOY CONDUCTORS,ALUMINUM-CLAD INVAR REINFORCED
The STACIR/AW (Hi-STACIR/AW) conductor is a new type of overhead conductor,consists of an aluminum-clad Invar core and heat-resistant aluminum alloy wires, which is suitable for the reconstruction of old lines to increase capacity while keeping the sag unchanged.
Application
STACIR/AW, Hi-STACIR/AW is normally used to up-rate an existing transmission line by simply replacing the existing conductor without tower modification or reinforcement.

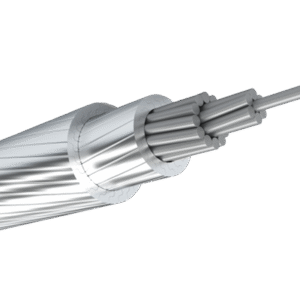

Description
Super thermal-resistant aluminum alloy conductor,aluminum clad Invar reinforced is a high ampacity conductor with inner core composed of aluminum clad Invar/high tensile strength aluminum-clad Invar& outer layer composed of super thermal-resistant aluminium alloy with round.
Chaircteritics
Double current carrying capacity of the same size ACSR
No limitation for application area : Heavy wind, snow & galloping area
Equivalent Sag-tension properties to conventional ACSR
No modification & reinforcement on existing tower
Easy installation with same method & equipments as ACSR’s
Low cost and short construction period
Specification
IEC,ASTM,JCS 1405
Technical Parameter
| Conductor Size | Calculated Area | Stranding | Overall Diameter | Approx.Weight | Min. Breaking Load | DC Resistance at 20℃ | |||||
| STAL | AL-INVAR | Total | STAL | AL-INVAR | STAL | AL-INVAR | Total | ||||
| mm² | mm² | mm² | mm² | No./mm | No./mm | mm | kg/km | kg/km | kg/km | kgf | Ω/km |
| 160 | 159.30 | 37.16 | 196.46 | 30/2.6 | 7/2.6 | 18.20 | 441.7 | 265.2 | 706.9 | 6140 | 0.1745 |
| 240 | 241.30 | 56.29 | 297.59 | 30/3.2 | 7/3.2 | 22.40 | 669.1 | 401.7 | 1070.8 | 9170 | 0.1159 |
| 330 | 326.80 | 52.84 | 379.64 | 26/4.0 | 7/3.1 | 25.30 | 905.1 | 377.0 | 1282.1 | 10000 | 0.0869 |
| 410 | 413.40 | 67.35 | 480.75 | 26/4.5 | 7/3.5 | 28.50 | 1145.5 | 480.6 | 1626.1 | 12720 | 0.0686 |
| 480 (Rail) | 483.84 | 33.54 | 517.38 | 45/3.7 | 7/2.47 | 29.61 | 1340.7 | 239.3 | 1580.0 | 10500 | 0.0600 |
| 480 (Cardinal) | 484.52 | 62.81 | 547.33 | 54/3.38 | 7/3.38 | 30.42 | 1343.5 | 452.2 | 1795.7 | 13280 | 0.0591 |
