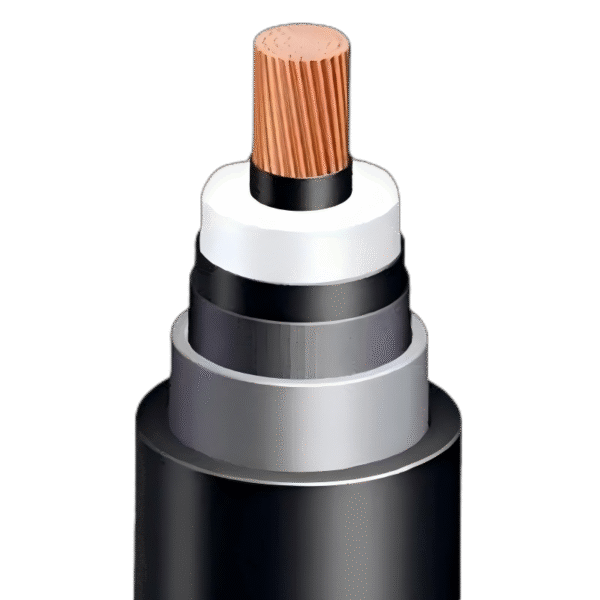

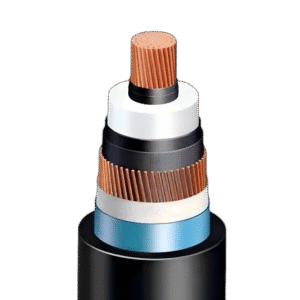

Lead Sheath 38/66kV, 64/110kV, 76/132kV, 127/220kV
HV cable is used for the transmission and distribution of electric power and is suitable for installation in ducts, trenches or direct buried underground or within buildings. These cables are ideal for use to connect wind farms and other renewable energy to existing grid systems.
- Voltage:
- 38/66kV, 64/110kV, 76/132kV, 127/220kV
- Conductor:
- Copper/Aluminum Class 2
- Core:
- single core
- Cross Sectional Area:
- 240mm2~2500mm2
- Insulation:
- XLPE
- Inner Sheath:
- Lead Sheath
- Outer Sheath:
- PE (or PVC)
Application
High voltage cables are commonly used for applications such as interconnection between transmission lines, underground distribution systems and substations.
Feature
The construction of cables varies depending on the voltage level and the specific application.
For lower voltage levels, the cable consists of solid or stranded conductors with multiple layers of insulation and protective material added around them.
For higher voltage applications, additional layers of insulation and shielding are added to improve the electrical performance and safety of the cable.
Technical Parameter
| Nominal Area | Alu. sheath thickness (Minimum) | Outer sheath thickness (Nominal) | Overall Diameter (Approx.) | App. Weight (Aluminium) | App. Weight (Copper) | Approx. Capacitance |
| mm2 | mm | mm | mm | kg/m | kg/m | μF/km |
| 95 | 1.8 | 2.4 | 51 | 4.4 | 5.3 | 0.15 |
| 120 | 1.8 | 2.5 | 53 | 4.8 | 5.9 | 0.16 |
| 150 | 1.8 | 2.6 | 55 | 5.2 | 6.5 | 0.16 |
| 185 | 1.8 | 2.6 | 57 | 5.7 | 7.3 | 0.18 |
| 240 | 1.9 | 2.7 | 60 | 6.5 | 8.5 | 0.19 |
| 300 | 1.9 | 2.8 | 62 | 7.2 | 9.2 | 0.2 |
| 400 | 2 | 3 | 66 | 8.1 | 10.4 | 0.22 |
| 500 | 2.1 | 3 | 69 | 8.9 | 11.9 | 0.24 |
| 630 | 2.2 | 3.1 | 73 | 9.9 | 13.6 | 0.26 |
| 800 | 2.3 | 3.3 | 78 | 11 | 15.9 | 0.29 |
| 1000 | 2.4 | 3.4 | 81 | 12.2 | 18.2 | 0.31 |
| 1200 | 2.5 | 3.5 | 89 | 14 | 21.3 | 0.36 |
| 1400 | 2.6 | 3.6 | 93 | 15.3 | 23.6 | 0.38 |
| 1600 | 2.7 | 3.8 | 97 | 16.5 | 26 | 0.4 |
| 2000 | 2.9 | 3.9 | 103 | 19.1 | 31 | 0.44 |
| Nominal Area | Alu. sheath thickness (Minimum) | Outer sheath thickness (Nominal) | Overall Diameter (Approx.) | App. Weight (Aluminium) | App. Weight (Copper) | Approx. Capacitance |
| mm2 | mm | mm | mm | kg/m | kg/m | μF/km |
| 150 | 2.1 | 2.9 | 66 | 7.1 | 8.4 | 0.13 |
| 185 | 2.1 | 3 | 68 | 7.6 | 9.3 | 0.14 |
| 240 | 1.9 | 2.7 | 60 | 6.5 | 8.5 | 0.19 |
| 300 | 1.9 | 2.8 | 62 | 7.2 | 9.2 | 0.2 |
| 400 | 2 | 3 | 66 | 8.1 | 10.4 | 0.22 |
| 500 | 2.1 | 3 | 69 | 8.9 | 11.9 | 0.24 |
| 630 | 2.2 | 3.1 | 73 | 9.9 | 13.6 | 0.26 |
| 800 | 2.3 | 3.3 | 78 | 11 | 15.9 | 0.29 |
| 1000 | 2.4 | 3.4 | 81 | 12.2 | 18.2 | 0.31 |
| 1200 | 2.5 | 3.5 | 89 | 14 | 21.3 | 0.36 |
| 1400 | 2.6 | 3.6 | 93 | 15.3 | 23.6 | 0.38 |
| 1600 | 2.7 | 3.8 | 97 | 16.5 | 26 | 0.4 |
| 2000 | 2.9 | 3.9 | 103 | 19.1 | 31 | 0.44 |
| Nominal Area | Alu. sheath thickness (Minimum) | Outer sheath thickness (Nominal) | Overall Diameter (Approx.) | App. Weight (Aluminium) | App. Weight (Copper) | Approx. Capacitance |
| mm2 | mm | mm | mm | kg/m | kg/m | μF/km |
| 400 | 2.9 | 4 | 99 | 15.9 | 18.3 | 0.13 |
| 500 | 2.9 | 4.1 | 103 | 16.9 | 19.9 | 0.14 |
| 630 | 3 | 4.2 | 106 | 18.2 | 22 | 0.15 |
| 800 | 3.1 | 4.3 | 110 | 19.7 | 24.6 | 0.16 |
| 1000 | 3.3 | 4.4 | 115 | 21.6 | 27.6 | 0.17 |
| 1200 | 3.4 | 4.6 | 121 | 23.7 | 31 | 0.19 |
| 1400 | 3.5 | 4.7 | 125 | 25.4 | 33.7 | 0.2 |
| 1600 | 3.5 | 4.8 | 128 | 26.5 | 36 | 0.21 |
| 2000 | 3.7 | 5 | 135 | 29.7 | 41.6 | 0.23 |
| Nominal Area | Alu. sheath thickness (Minimum) | Outer sheath thickness (Nominal) | Overall Diameter (Approx.) | App. Weight (Aluminium) | App. Weight (Copper) | Approx. Capacitance |
| mm2 | mm | mm | mm | kg/m | kg/m | μF/km |
| 400 | 2 | 3.8 | 108 | 8.5 | 10.8 | 0.13 |
| 500 | 2.1 | 3.9 | 112 | 9.3 | 12.2 | 0.14 |
| 630 | 2.1 | 4 | 116 | 10.1 | 13.8 | 0.15 |
| 800 | 2.2 | 4.1 | 121 | 11.2 | 16 | 0.16 |
| 1000 | 2.3 | 4.3 | 126 | 12.3 | 18.3 | 0.17 |
| 1200 | 2.3 | 4.4 | 132 | 13.7 | 20.9 | 0.19 |
| 1400 | 2.4 | 4.5 | 137 | 14.9 | 23.2 | 0.2 |
| 1600 | 2.5 | 4.6 | 141 | 16.1 | 25.5 | 0.21 |
| 2000 | 2.6 | 4.8 | 149 | 18.2 | 30.1 | 0.23 |
