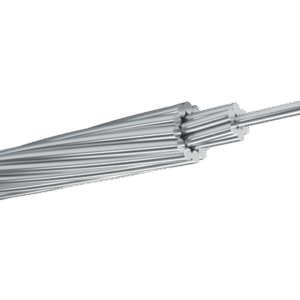

ACSR/AW–Aluminum Conductor Aluminum Clad Steel Reinforced

Aluminum wires, concentrically stranded about an aluminum-clad steel core.

Application
Used as bare overhead transmission and as primary and secondary distribution cable. ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires.

Description
Aluminum wires, concentrically stranded about an aluminum-clad steel core.

Specification
• IEC 61089 Round wire concentric lay overhead electrical stranded conductors
• ASTM B 549 Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced for Use in Overhead Electrical Conductors
• GB/T 1179 Round wire concentric lay overhead electrical stranded conductors

Technical Parameter

ACSR/AW

Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Thrasher	2312	1171	76	4.43	19	2.07	246	3679	45.79	0.0244
Kiwi	2167	1098	72	4.41	7	2.94	218	3366	44.10	0.0261
Bluebird	2156	1092	84	4.07	19	2.44	262	3627	44.76	0.0259
Chukar	1780	902	84	3.70	19	2.22	220	2996	40.70	0.0314
Falcon	1590	806	54	4.36	19	2.62	236	2917	39.26	0.0346
Lapwing	1590	806	45	4.78	7	3.18	186	2598	38.22	0.0351
Parrot	1510.5	765	54	4.25	19	2.55	224	2768	38.25	0.0364
Nuthatch	1510.5	765	45	4.65	7	3.10	177	2467	37.20	0.0370
Plover	1431	725	54	4.14	19	2.48	212	2625	37.24	0.0384
Bobolink	1431	725	45	4.53	7	3.02	167	2336	36.24	0.0390
Martin	1351.5	685	54	4.02	19	2.41	201	2478	36.17	0.0407
Dipper	1351.5	685	45	4.40	7	2.93	158	2207	35.19	0.0414
Pheasant	1272	645	54	3.90	19	2.34	189	2333	35.10	0.0433
Bittern	1272	645	45	4.27	7	2.85	149	2078	34.17	0.0439
Skylark	1272	645	36	4.78	1	4.78	114	1893	33.46	0.0442
Grackle	1192.5	604	54	3.77	19	2.27	179	2188	33.97	0.0463
Bunting	1192.5	604	45	4.14	7	2.76	139	1948	33.12	0.0467
Finch	1113	564	54	3.65	19	2.19	167	2043	32.85	0.0494
Bluejay	1113	564	45	4.00	7	2.66	130	1819	31.98	0.0501
Curlew	1033.5	524	54	3.51	7	3.51	158	1896	31.59	0.0534
Ortolan	1033.5	524	45	3.85	7	2.57	121	1688	30.81	0.0540
Tanager	1033.5	524	36	4.30	1	4.30	94	1537	30.10	0.0546
Cardinal	954	483	54	3.38	7	3.38	146	1752	30.42	0.0573
Rail	954	483	45	3.70	7	2.47	113	1558	29.61	0.0585
Catbird	954	483	36	4.14	1	4.14	87	1420	28.98	0.0589
Canary	900	456	54	3.28	7	3.28	138	1653	29.52	0.0608
Ruddy	900	456	45	3.59	7	2.40	107	1470	28.74	0.0621
Mallary	795	403	30	4.14	19	2.48	165	1726	28.96	0.0668
Condor	795	403	54	3.08	7	3.08	124	1458	27.72	0.0690
Tern	795	403	45	3.38	7	2.25	96	1298	27.03	0.0701
Drake	795	403	26	4.44	7	3.45	136	1549	28.11	0.0682
Cuckoo	795	403	24	4.62	7	3.08	122	1460	27.72	0.0690

Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Coot	795	403	36	3.77	1	3.77	74	1183	26.39	0.0711
Redwing	715.5	363	30	3.92	19	2.35	149	1552	27.43	0.0744
Starling	715.5	363	26	4.21	7	3.28	122	1393	26.68	0.0758
Stilt	715.5	363	24	4.39	7	2.92	110	1314	26.32	0.0764
Gannet	666.6	338	26	4.07	7	3.16	116	1298	25.76	0.0812
Flamingo	666.6	338	24	4.23	7	2.82	103	1225	25.38	0.0823
Egret	636	322	30	3.70	19	2.22	133	1381	25.90	0.0836
Sooter	636	322	30	3.70	7	3.70	130	1391	25.90	0.0834
Grosbeak	636	322	26	3.97	7	3.09	110	1238	25.15	0.0853
Rook	636	322	24	4.14	7	2.76	98	1168	24.84	0.0859
Swift	636	322	36	3.38	1	3.38	61	946	23.66	0.0884
Kingbird	636	322	18	4.78	1	4.78	67	1006	23.90	0.0876
Teal	605	307	30	3.61	19	2.16	127	1314	25.24	0.0878
Wood Duck	605	307	30	3.61	7	3.61	126	1323	25.27	0.0876
Squab	605	307	26	3.87	7	3.01	105	1177	24.51	0.0898
Peacock	605	307	24	4.03	7	2.69	93	1112	24.19	0.0906
Eagle	556.5	282	30	3.46	7	3.46	119	1217	24.22	0.0954
Dove	556.5	282	26	3.72	7	2.89	97	1083	23.55	0.0972
Parakeet	556.5	282	24	3.87	7	2.58	86	1022	23.22	0.0983
Ospray	556.5	282	18	4.47	1	4.47	59	880	22.35	0.1002
Hen	477	242	30	3.20	7	3.20	104	1043	22.40	0.1115
Hawk	477	242	26	3.44	7	2.68	84	929	21.80	0.1136
Flicker	477	242	24	3.58	7	2.39	74	877	21.49	0.1148
Pelican	477	242	18	4.14	1	4.14	51	755	20.70	0.1168
Lark	397.5	201	30	2.92	7	2.92	87	869	20.44	0.1339
Ibis	397.5	201	26	3.14	7	2.44	70	774	19.88	0.1364
Brant	397.5	201	24	3.27	7	2.18	63	731	19.62	0.1377
Chickadee	397.5	201	18	3.77	1	3.77	44	628	18.85	0.1408
Oriole	336.4	170	30	2.69	7	2.69	74	737	18.83	0.1574
Linnet	336.4	170	26	2.89	7	2.25	60	655	18.31	0.1609
Merlin	336.4	170	18	3.47	1	3.47	38	531	17.35	0.1662
Ostrich	300	152	26	2.73	7	2.12	54	583	17.28	0.1804

Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Partridge	266.8	135	26	2.57	7	2.00	48	519	16.28	0.2035
Waxwing	266.8	135	18	3.09	1	3.09	30	421	15.45	0.2096
Penguin	211.6	107	6	4.77	1	4.77	34	412	14.31	0.2533
Cochin	211.3	107	12	3.37	7	3.37	88	710	16.85	0.2258
Brahma	203.2	103	16	2.86	19	2.48	121	894	18.12	0.2163
Dorking	190.8	96.7	12	3.20	7	3.20	81	641	16.00	0.2505
Dotterel	176.9	89.6	12	3.08	7	3.08	75	594	15.40	0.2704
Pigeon	167.8	85.0	6	4.25	1	4.25	28	326	12.75	0.3191
Guinea	159	80.6	12	2.92	7	2.92	68	534	14.60	0.3008
3/0 (5/2)	152.5	77.3	5	4.44	2	4.44	43	418	13.32	0.3261
3/0 (4/3)	141.3	71.6	4	4.78	3	4.78	63	555	14.34	0.3187
Leghom	134.6	68.2	12	2.69	7	2.69	58	452	13.45	0.3545
Quail	133.1	67.4	6	3.78	1	3.78	23	259	11.34	0.4035
2/0 (5/2)	121	61.3	5	3.95	2	3.95	36	332	11.85	0.4121
2/0 (4/3)	112.1	56.8	4	4.25	3	4.25	53	441	12.75	0.4032
Minorca	110.8	56.1	12	2.44	7	2.44	48	372	12.20	0.4308
Raven	105.6	53.5	6	3.37	1	3.37	19	205	10.11	0.5074
Petrel	101.8	51.6	12	2.34	7	2.34	44	342	11.70	0.4684
2/0 (3/4)	99.83	50.6	3	4.63	4	4.63	73	588	13.89	0.3928
1/0 (5/2)	95.91	48.6	5	3.52	2	3.52	29	263	10.56	0.5189
1/0 (4/3)	88.80	45.0	4	3.79	3	3.79	43	348	11.37	0.5070
Robin	83.69	42.4	6	3.00	1	3.00	15	162	9.00	0.6403
Grouse	80.00	40.5	8	2.54	1	4.24	22	205	9.32	0.6359
1/0 (3/4)	79.13	40.1	3	4.13	4	4.13	61	466	12.39	0.4936
1 (5/2)	76.08	38.6	5	3.13	2	3.13	24	208	9.39	0.6563
1 (4/3)	70.48	35.7	4	3.37	3	3.37	36	277	10.11	0.6413
Sparate	66.36	33.6	7	2.47	1	3.30	16	149	8.24	0.7874
Sparrow	66.36	33.6	6	2.67	1	2.67	12	129	8.01	0.8084
1/0 (2/5)	64.92	32.9	2	4.58	5	4.58	87	640	13.74	0.4730
1 (3/4)	62.77	31.8	3	3.67	4	3.67	50	369	11.01	0.6251
2 (5/2)	60.34	30.6	5	2.79	2	2.79	19	165	8.37	0.8260
2 (4/3)	55.89	28.3	4	3.00	3	3.00	29	219	9.00	0.8092

Code Name	Conductor Size – Aluminum		Aluminum		Aluminum-Clad Steel		Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	Conductor Size – Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Conductor Rated Strength	Mass per Unit Length	Nominal Outside Diameter	DC Resistance at 20°C
	MCM	mm²		mm		mm	kN	kg/km	mm	Ω/km
Swallow	52.62	26.7	6	2.38	1	2.38	10	103	7.14	1.0174
1 (2/5)	51.50	26.1	2	4.08	5	4.08	73	507	12.24	0.5961
2 (3/4)	49.78	25.2	3	3.27	4	3.27	43	293	9.81	0.7874
3 (5/2)	47.85	24.3	5	2.48	2	2.48	16	131	7.44	1.0454
3 (4/3)	44.32	22.5	4	2.68	3	2.68	23	174	8.04	1.0140
Swanate	41.74	21.2	7	1.96	1	2.61	10	93	6.53	1.2511
Swan	41.74	21.2	6	2.12	1	2.12	8	81	6.36	1.2823
2 (2/5)	40.84	20.7	2	3.63	5	3.63	60	402	10.89	0.7530
3 (3/4)	39.47	20.0	3	2.91	4	2.91	34	232	8.73	0.9943
4 (5/2)	37.95	19.2	5	2.21	2	2.21	12	104	6.63	1.3164
4 (4/3)	35.15	17.8	4	2.38	3	2.38	19	138	7.14	1.2857
3 (2/5)	32.39	16.4	2	3.23	5	3.23	50	320	9.69	0.9510
4 (3/4)	31.30	15.9	3	2.60	4	2.60	27	185	7.80	1.2455
4 (2/5)	25.69	13.0	2	2.88	5	2.88	40	253	8.64	1.1962

ACSR/AW（JL/LB14）

Code Number	Steel Ratio	Calculated Area			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	DC. Resistance at 20℃
	Steel Ratio	Al.	AW.	Total	Al	AW.	Al.	AW.	AW.	Cond.	Linear Mass	Rated Strength	DC. Resistance at 20℃
	%	mm²	mm²	mm²			mm	mm	mm	mm	kg/km	kN	Ω/km
25/4	16.7	24.1	4.01	28.1	6	1	2.26	2.26	2.26	6.78	94.7	9.87	1.1476
40/5	16.7	38.3	6.38	44.7	6	1	2.85	2.85	2.85	8.55	150.6	15.50	0.7216
50/8	16.7	48.3	8.04	56.3	6	1	3.20	3.20	3.20	9.60	189.8	19.06	0.5724
60/10	16.7	60.4	10.1	70.5	6	1	3.58	3.58	3.58	10.7	237.6	23.15	0.4573
70/10	16.7	68.0	11.3	79.3	6	1	3.80	3.80	3.80	11.4	267.7	26.08	0.4059
70/40	58.3	69.7	40.7	110	12	7	2.72	2.72	8.16	13.6	484.2	69.21	0.3645
95/15	16.7	95.9	16.0	112	6	1	4.51	4.51	4.51	13.5	377.1	36.74	0.2882
95/55	58.3	96.5	56.3	153	12	7	3.20	3.20	9.60	16.0	670.2	93.61	0.2633
120/7	5.6	119	6.61	125	18	1	2.90	2.90	2.90	14.5	374.6	29.53	0.2391
120/70	58.3	122	71.3	193	12	7	3.60	3.60	10.8	18.0	848.2	115.0	0.2081
150/8	5.6	145	8.04	153	18	1	3.20	3.20	3.20	16.0	456.2	34.98	0.1964
150/35	23.3	147	34.4	182	30	7	2.50	2.50	7.50	17.5	653.3	74.22	0.1861
185/10	5.6	183	10.2	193	18	1	3.60	3.60	3.60	18.0	577.3	42.95	0.1552
185/30	16.3	181	29.6	211	26	7	2.98	2.32	6.96	18.9	712.9	72.55	0.1534
185/45	23.3	185	43.1	228	30	7	2.80	2.80	8.40	19.6	819.5	92.18	0.1483
200/10	5.6	198	11.0	209	18	1	3.74	3.74	3.74	18.7	623.1	46.36	0.1438
200/30	16.3	192	31.4	224	26	7	3.07	2.39	7.17	19.5	756.6	76.04	0.1445
210/10	5.6	204	11.3	215	18	1	3.80	3.80	3.80	19.0	643.3	47.86	0.1393
210/35	16.2	212	34.4	246	26	7	3.22	2.50	7.50	20.4	831.1	83.38	0.1314
210/50	23.3	209	48.8	258	30	7	2.98	2.98	8.94	20.9	928.3	104.4	0.1310
240/30	13.0	244	31.7	276	24	7	3.60	2.40	7.20	21.6	901.1	83.74	0.1146
240/40	16.3	239	38.9	278	26	7	3.42	2.66	7.98	21.7	938.5	94.26	0.1165
240/55	23.3	241	56.3	298	30	7	3.20	3.20	9.60	22.4	1070.4	117.5	0.1136
250/25	9.8	244	24.0	268	22	7	3.76	2.09	6.27	21.3	846.0	72.95	0.1154
250/40	16.3	240	39.2	279	26	7	3.43	2.67	8.01	21.7	944.4	94.90	0.1158
300/25	8.8	306	27.1	333	48	7	2.85	2.22	6.66	23.8	1040.5	90.26	0.0925
300/40	13.0	300	38.9	339	24	7	3.99	2.66	7.98	23.9	1106.9	102.9	0.0933
300/50	16.3	300	48.8	348	26	7	3.83	2.98	8.94	24.3	1177.2	116.8	0.0929
300/70	23.3	305	71.3	377	30	7	3.60	3.60	10.8	25.2	1354.7	144.3	0.0897
385/50	13.0	387	50.1	437	54	7	3.02	3.02	9.06	27.2	1429.5	133.0	0.0726
400/35	8.8	391	34.4	425	48	7	3.22	2.50	7.50	26.8	1326.6	112.9	0.0724
400/50	13.0	400	51.8	452	54	7	3.07	3.07	9.21	27.6	1477.2	137.5	0.0702
400/65	16.3	399	65.1	464	26	7	4.42	3.44	10.3	28.0	1568.1	153.6	0.0697
400/95	31.8	408	93.3	501	30	19	4.16	2.50	12.5	29.1	1797.8	196.7	0.0673

Code Number	Steel Ratio	Calculated Area			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	DC. Resistance at 20℃
	Steel Ratio	Al.	AW.	Total	Al	AW.	Al.	AW.	AW.	Cond.	Linear Mass	Rated Strength	DC. Resistance at 20℃
	%	mm²	mm²	mm²			mm	mm	mm	mm	kg/km	kN	Ω/km
440/30	6.9	443	30.6	474	45	7	3.54	2.36	7.08	28.3	1443.4	114.0	0.0642
435/55	13.0	437	56.6	494	54	7	3.21	3.21	9.63	28.9	1615.0	150.3	0.0642
490/35	6.9	492	34.1	526	45	7	3.73	2.49	7.47	29.9	1603.2	126.7	0.0578
485/60	13.0	485	62.8	547	54	7	3.38	3.38	10.1	30.4	1790.6	166.6	0.0579
550/40	6.9	551	38.0	589	45	7	3.95	2.63	7.89	31.6	1796.5	141.8	0.0516
620/40	6.9	620	42.8	663	45	7	4.19	2.79	8.37	33.5	2021.4	159.6	0.0458
610/75	12.7	609	77.6	687	54	19	3.79	2.28	11.4	34.1	2243.2	206.9	0.0461
630/45	6.9	623	43.1	667	45	7	4.20	2.80	8.40	33.6	2031.8	160.5	0.0456
630/55	8.8	640	56.3	696	48	7	4.12	3.20	9.60	34.3	2172.1	180.1	0.0442
700/50	6.9	697	48.2	745	45	7	4.44	2.96	8.88	35.5	2270.7	179.4	0.0408
700/85	12.7	689	87.4	776	54	19	4.03	2.42	12.1	36.3	2534.0	233.4	0.0408
720/50	6.9	725	50.1	775	45	7	4.53	3.02	9.06	36.2	2363.7	185.2	0.0392
790/35	4.3	791	34.1	825	72	7	3.74	2.49	7.47	37.4	2432.0	165.9	0.0362
785/65	8.3	785	65.4	851	84	7	3.45	3.45	10.4	38.0	2642.7	208.9	0.0362
775/100	12.7	777	98.6	875	54	19	4.28	2.57	12.9	38.5	2858.1	263.3	0.0362
800/55	6.9	814	56.3	871	45	7	4.80	3.20	9.60	38.4	2653.8	208.0	0.0349
800/70	8.8	808	71.3	879	48	7	4.63	3.60	10.8	38.6	2744.3	224.8	0.0350
800/100	12.7	795	101	896	54	19	4.33	2.60	13.0	39.0	2925.2	269.5	0.0353
880/75	8.3	884	73.6	957	84	7	3.66	3.66	11.0	40.3	2974.2	228.1	0.0321
890/115	12.7	890	113	1002	54	19	4.58	2.75	13.8	41.2	3272.7	301.5	0.0316
900/40	4.3	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2768.8	188.9	0.0318
990/45	4.3	988	42.8	1031	72	7	4.18	2.79	8.37	41.8	3039.5	207.5	0.0290
1025/45	4.3	1021	44.3	1066	72	7	4.25	2.84	8.52	42.5	3142.9	214.7	0.0280
1015/85	8.3	1014	84.5	1098	84	7	3.92	3.92	11.8	43.1	3411.8	261.6	0.0280
1135/50	4.3	1135	49.2	1184	72	7	4.48	2.99	8.97	44.8	3491.4	238.4	0.0252
1100/90	8.2	1098	89.6	1188	84	19	4.08	2.45	12.3	44.9	3684.2	286.9	0.0259
1225/100	8.2	1226	100	1326	84	19	4.31	2.59	13.0	47.4	4112.3	320.4	0.0232
1270/105	8.1	1271	103	1375	84	19	4.39	2.63	13.2	48.3	4261.9	331.5	0.0223
1405/115	8.1	1408	114	1523	84	19	4.62	2.77	13.9	50.8	4721.4	367.4	0.0202

ACSR/AW（JL/LB20A）

Code Number	Steel Ratio	Calculated Area				Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	DC. Resistance at 20℃
		Calculated Area				Number of Wires		Wire Diameter		Diameter					Al.	AW.	Total		Al	AW.	Al.	AW.	AW.	Cond.
		%	mm²	mm²	mm²				mm	mm	mm				mm	kg/km	kN	Ω/km
	15/3	16.7	15.4	2.57		18.0	6	1	1.81	1.81	1.81	5.43	59.3	5.94	1.7594
25/4	16.7	24.1	4.01		28.1	6	1	2.26	2.26	2.26	6.78	92.5	9.03	1.1285
40/5	16.7	38.3	6.38		44.7	6	1	2.85	2.85	2.85	8.55	147.1	14.16	0.7096
50/8	16.7	48.3	8.04		56.3	6	1	3.20	3.20	3.20	9.60	185.4	17.61	0.5629
60/10	16.7	60.4	10.1		70.5	6	1	3.58	3.58	3.58	10.7	232.1	21.14	0.4497
70/10	16.7	68.0	11.3		79.3	6	1	3.80	3.80	3.80	11.4	261.5	23.36	0.3992
70/40	58.3	69.7	40.7		110	12	7	2.72	2.72	8.16	13.6	461.8	60.66	0.3458
95/15	16.7	95.9	16.0		112	6	1	4.51	4.51	4.51	13.5	368.3	31.79	0.2834
95/20	19.8	95.1	18.8		114	7	7	4.16	1.85	5.55	13.9	386.0	37.80	0.2831
95/55	58.3	96.5	56.3		153	12	7	3.20	3.20	9.60	16.0	639.1	83.48	0.2498
120/7	5.6	119	6.61		125	18	1	2.90	2.90	2.90	14.5	371.0	28.14	0.2378
120/20	16.3	121	19.6		140	26	7	2.43	1.89	5.67	15.4	462.9	44.67	0.2269
120/25	19.8	122	24.2		147	7	7	4.72	2.10	6.30	15.7	497.1	48.69	0.2199
120/70	58.3	122	71.3		193	12	7	3.60	3.60	10.8	18.0	808.9	100.8	0.1974
150/8	5.6	145	8.04		153	18	1	3.20	3.20	3.20	16.0	451.7	33.54	0.1953
150/20	12.9	146	18.8		164	24	7	2.78	1.85	5.55	16.7	526.5	47.34	0.1898
150/25	16.3	149	24.2		173	26	7	2.70	2.10	6.30	17.1	571.5	54.40	0.1838
150/35	23.3	147	34.4		182	30	7	2.50	2.50	7.50	17.5	634.3	67.00	0.1818
155/25	16.3	153	24.9		178	26	7	2.74	2.13	6.39	17.4	588.4	55.99	0.1785
185/10	5.6	183	10.2		193	18	1	3.60	3.60	3.60	18.0	571.7	40.92	0.1543
185/25	13.0	187	24.2		211	24	7	3.15	2.10	6.30	18.9	676.5	59.96	0.1478
185/30	16.3	181	29.6		211	26	7	2.98	2.32	7.96	18.9	696.6	66.34	0.1509
185/45	23.3	185	43.1		228	30	7	2.80	2.80	8.40	19.6	795.7	83.13	0.1449
200/10	5.6	198	11.0		209	18	1	3.74	3.74	3.74	18.7	617.1	43.72	0.1429
200/30	16.3	192	31.4		224	26	7	3.07	2.39	7.17	19.5	739.3	69.44	0.1422
210/10	5.6	204	11.3		215	18	1	3.80	3.80	3.80	19.0	637.0	45.14	0.1385
210/25	13.0	209	27.1		236	24	7	3.33	2.22	6.66	20.0	756.1	67.00	0.1322
210/35	16.2	212	34.4		246	26	7	3.22	2.50	7.50	20.4	812.1	76.17	0.1293
210/50	23.3	209	48.8		258	30	7	2.98	2.98	8.94	20.9	901.3	94.16	0.1280
240/30	13.0	244	31.7		276	24	7	3.60	2.40	7.20	21.6	883.6	77.09	0.1131
240/40	16.3	239	38.9		278	26	7	3.42	2.66	7.98	21.7	917.0	86.09	0.1146
240/55	23.3	241	56.3		298	30	7	3.20	3.20	9.60	22.4	1039.3	107.4	0.1110
250/25	9.8	244	24.0		268	22	7	3.76	2.09	6.27	21.3	832.7	67.90	0.1143
250/40	16.3	240	39.2		279	26	7	3.43	2.67	8.01	21.7	922.8	86.67	0.1139

Code Number	Steel Ratio	Calculated Area					Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	DC. Resistance at 20℃
		Calculated Area					Number of Wires		Wire Diameter		Diameter					Al.	AW.		Total	Al	AW.	Al.	AW.	AW.	Cond.
		%	mm²	mm²		mm²				mm	mm	mm				mm	kg/km	kN	Ω/km
	300/15	5.2	297		15.3		312	42	7	3.00	1.67	5.01	23.0	921.8	68.87	0.0957
300/20	6.9	303		20.9		324	45	7	2.93	1.95	5.85	23.4	976.8	76.67	0.0931
300/25	8.8	306		27.1		333	48	7	2.85	2.22	6.66	23.8	1025.6	84.57	0.0916
300/40	13.0	300		38.9		339	24	7	3.99	2.66	7.98	23.9	1085.5	94.69	0.0921
300/50	16.3	300		48.8		348	26	7	3.83	2.98	8.94	24.3	1150.3	106.5	0.0913
300/70	23.3	305		71.3		377	30	7	3.60	3.60	10.8	25.2	1315.4	130.1	0.0877
310/20	6.9	310		21.3		331	45	7	2.96	1.97	5.91	23.7	996.9	78.25	0.0912
395/25	6.9	394		27.1		421	45	7	3.34	2.22	6.66	26.7	1268.8	97.6	0.0716
385/50	13.0	387		50.1		437	54	7	3.02	3.02	9.06	27.2	1401.8	124.0	0.0716
400/20	5.1	406		20.9		427	42	7	3.51	1.95	5.85	26.9	1261.4	90.11	0.0699
400/25	6.9	392		27.1		419	45	7	3.33	2.22	6.66	26.6	1262.3	97.2	0.0720
400/35	8.8	391		34.4		425	48	7	3.22	2.50	7.50	26.8	1307.6	105.7	0.0718
400/50	13.0	400		51.8		452	54	7	3.07	3.07	9.21	27.6	1448.6	128.1	0.0693
400/65	16.3	399		65.1		464	26	7	4.42	3.44	10.3	28.0	1532.2	140.6	0.0686
400/95	31.8	408		93.3		501	30	19	4.16	2.50	12.5	29.1	1746.1	177.2	0.0658
440/30	6.9	443		30.6		474	45	7	3.54	2.36	7.08	28.3	1426.5	107.6	0.0637
435/35	13.0	437		56.6		494	54	7	3.21	3.21	9.63	28.9	1583.7	140.1	0.0634
490/35	6.9	492		34.1		526	45	7	3.73	2.49	7.47	29.9	1584.4	119.6	0.0574
485/60	13.0	485		62.8		547	54	7	3.38	3.38	10.1	30.4	1755.9	154.1	0.0572
550/40	6.9	551		38.0		589	45	7	3.95	2.63	7.89	31.6	1775.5	133.9	0.0512
545/70	12.7	544		69.0		613	54	19	3.58	2.15	10.8	32.2	1961.6	169.7	0.0510
620/40	6.9	620		42.8		663	45	7	4.19	2.79	8.37	33.5	1997.8	150.6	0.0455
610/75	12.7	609		77.6		687	54	19	3.79	2.28	11.4	34.1	2200.2	190.6	0.0455
630/45	6.9	623		43.1		667	45	7	4.20	2.80	8.40	33.6	2008.0	151.5	0.0453
630/55	8.8	640		56.3		696	48	7	4.12	3.20	9.60	34.3	2141.0	169.9	0.0438
700/50	6.9	697		48.2		745	45	7	4.44	2.96	8.88	35.5	2244.1	169.3	0.0405
700/85	12.7	689		87.4		776	54	19	4.03	2.42	12.1	36.3	2485.6	215.1	0.0403
720/50	6.9	725		50.1		775	45	7	4.53	3.02	9.06	36.2	2337.9	176.2	0.0390
790/35	4.3	791		34.1		825	72	7	3.74	2.49	7.47	37.4	2413.2	159.1	0.0360
785/65	8.3	785		65.4		851	84	7	3.45	3.45	10.4	38.0	2606.6	196.4	0.0358
775/100	12.7	777		98.6		875	54	19	4.28	2.57	12.9	38.5	2803.4	242.6	0.0357
800/55	6.9	814		56.3		871	45	7	4.80	3.20	9.60	38.4	2622.7	197.8	0.0347
800/70	8.8	808		71.3		879	48	7	4.63	3.60	10.8	38.6	2704.9	210.5	0.0347
800/100	12.7	795		101		896	54	19	4.33	2.60	13.0	39.0	2869.3	248.3	0.0349

Code Number	Steel Ratio	Calculated Area					Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	DC. Resistance at 20℃
		Calculated Area					Number of Wires		Wire Diameter		Diameter					Al.	AW.		Total	Al	AW.	Al.	AW.	AW.	Cond.
		%	mm²	mm²		mm²				mm	mm	mm				mm	kg/km	kN	Ω/km
	880/75	8.3	884		73.6		957	84	7	3.66	3.66	11.0	40.3	2933.5	211.3	0.0318
890/115	12.7	890		113		1002	54	19	4.58	2.75	13.8	41.2	3210.1	277.8	0.0312
900/40	4.3	900		38.9		939	72	7	3.99	2.66	7.98	39.9	2747.3	181.2	0.0317
900/75	8.3	898		74.9		973	84	7	3.69	3.69	11.1	40.6	2981.8	214.8	0.0313
990/45	4.3	988		42.8		1031	72	7	4.18	2.79	8.37	41.8	3015.9	199.0	0.0288
1025/45	4.3	1021		44.3		1066	72	7	4.25	2.84	8.52	42.5	3118.4	205.8	0.0279
1135/50	4.3	1135		49.2		1184	72	7	4.48	2.99	8.97	44.8	3464.3	228.5	0.0251
1100/90	8.2	1098		89.6		1188	84	19	4.08	2.45	12.3	44.9	3634.6	269.0	0.0256
1235/50	4.2	1239		52.2		1291	72	19	4.68	1.87	9.35	46.8	3772.0	247.7	0.0230
1225/100	8.2	1226		100		1326	84	19	4.31	2.59	13.0	47.4	4056.9	300.4	0.0230
1270/105	8.1	1271		103		1375	84	19	4.39	2.63	13.2	48.3	4204.6	310.9	0.0222
1420/60	4.2	1419		60.3		1480	72	19	5.01	2.01	10.1	50.1	4325.9	284.5	0.0201
1435/60	4.2	1436		60.3		1497	72	19	5.04	2.01	10.1	50.4	4373.1	287.1	0.0199
1405/115	8.1	1408		114		1523	84	19	4.62	2.77	13.9	50.8	4658.0	344.6	0.0200
